Fallout 2 - Proto Manager v1.1.4

Discussion in 'Fallout General Modding' started by Muttie, Mar 27, 2019.

  1. Muttie

    Muttie It Wandered In From the Wastes

    Oct 9, 2017
    These are mostly my experiences so far using the Proto Manager.

    @Mr.Stalin Feedback:
    - It seems not possible to simple run down the lists using arrow keys (as you can in F2wedit), well you can, but it won't show any values (:)). Having the option to open several windows for comparison is cool, but a quick info window that pops up when browsing would be cool, too. Perhaps with only a few numbers to check the basic stats of an item. (like a pop up list on the left showing: weapon name, dmg, AP, range, weapon type (animate code), damage type, attack types, rounds, caliber, max ammo, weapon perk and perhaps if one/two handed. And similar for armour and drugs.) Perhaps not a big deal, but it would be convenient.

    - Second, the search function doesn't cycle, for example, searching for Cassidy will not go through all 5 incarnations, instead you have to reselect the search field before pressing enter again. Which doesn't matter with items, but is inconvenient with critters (like scorpions). So it would be nice if the Manager could stay in the search function when pressing enter.

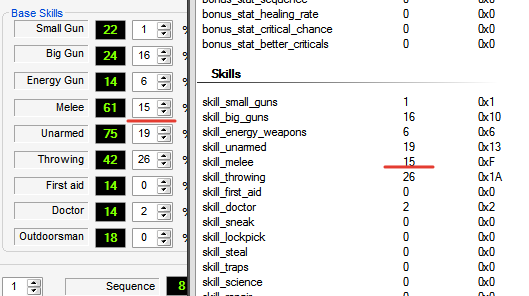

    - And the skill order in the ProtoManager (for critters) is Melee Weapons – Unarmed. While in-game it is Unarmed – Melee Weapons. This switch around can cause errors when not paying attention to it, and switching it back to the order used in-game would avoid problems (i.e. Small Guns, Big Guns, Energy Weapons, Unarmed, Melee, Throwing etc.).

    New feature:
    - It would be nice if the critter section could switch between Fo1 & Fo2 formula for the base value. Like a switch button. The only difference between Fo1 & Fo2 are:
    Small Guns Fo1: 35+AG Fo2: 5+(AG*4)
    Big Guns Fo1: 10+AG Fo2: AG*2
    Energy Weapons Fo1: 10+AG Fo2: AG*2
    Unarmed Fo1: 65+((ST+AG)/2) Fo2: 30+((ST+AG)*2)
    Melee Weapon Fo1: 55+((ST+AG)/2) Fo2: 20+((ST+AG)*2)
    Throwing Fo1: 40+AG Fo2: AG*4
    First Aid Fo1: 30+((PE+IN)/2) (mind the bug) Fo2: (PE+IN)*2
    Doctor Fo1: 15+((PE+IN)/2) Fo2: PE+IN+5
    Sneak Fo1: 25+AG Fo2: (AG*3)+5
    Lockpick Fo1: 20+((PE+AG)/2) PE+AG+10
    Steal Fo1: 20+AG Fo2: AG*3
    Traps Fo1: 20+((PE+AG)/2) Fo2: PE+AG+10
    Science Fo1: 25+(IN*2) Fo2: IN*4
    Repair Fo1: 20+IN Fo2: IN*3
    Speech Fo1: 25+(CH*2) Fo2: CH*5
    Barter Fo1: 20+(CH*2) Fo2: CH*4
    Gambling Fo1: 20+(LK*3) Fo2: LK*5
    Outdoorsman Fo1: 5+((EN+IN)/2) Fo2: (EN+IN)*2

    Errors:
    -The mods I had trouble with were MegaMod (opening anything spawns an error message (too many lst entries?), but then it works).
    -And Fallout Fixt (scrambled weapon perks). Which is odd as ProtoManager 1.1.4 does not have that problem with vanilla Fo1. In addition, F2wedit does not have that problem with Fixt perks either.
    Those scrambled perks are:
    Alcoholic should be Long Range
    Long Range should be Accurate
    Accurate should be Penetrate and
    Penetrate should be Knockback
    Knockback should be Power Armor (+30% Rad. resistance)
    Perhaps ProtoManager can find a fix? For example, F2wedit works fine with both mods. I looked at the perk.msg files in both Fo1 & Fixt and all the numbers in Fixt are the same only the order changed to: 164 Alcoholic, 159 Long Range, 160 Accurate, 161 Penetrate, 162 Knockback, 163 Power Armour. And Combat Armour has been named Alcoholic and moved up. So apparently ProtoManager doesn't check for the number, but the order and starts with “164 Alcoholic” instead “159 Long Range” and so on, resulting in all perks being one off.

    Anyway, these were the points I came across.


    P.S.:
    For anyone who is interested, the files ProtoManager needs are:
    - Location of Game folder (This requires nothing but critter.dat and master.dat)
    - Location of MOD folder (This is data/art/critters (lst & ...AA frms), data/art/inven (lst & frms), data/art/items (lst & frms), data/proto/critters (lst & pro), data/proto/items (lst & pro), data/scripts (lst), data/text/english/game (perk, pro_crit, pro_item, pro_misc, proto) (and it may need some other stuff I've missed and haven't noticed yet.) (Btw, the “art section” can be ignored, but it won't show any graphics then, which makes orientating more difficult).

    If using F2wedit: In addition to what ProtoManager needs it also needs the .exe (Fo1 or Fo2) and stat.msg (data/text/english/game) and it seems best to put all (but especially the exe) in one folder (the one with the data).

    Anyway, that's how I set up a folder (master & critter), with subfolders for all mods, to be read by ProtoManagers. The reason I do this is: First, to avoid (accidentally) messing with my installs (mostly in regard to pressing buttons (i.e. editing/creating files). However, as far as I can tell, the readers don't change anything by default (only F2wedit appears to make a save of pro_item at the end of every session)), second as it's more convenient when resetting the config (I only need to adjust the data path), and last as it was necessary to extract some files from the master.dat (sometimes the Manager can't find the files when the master.dat or data/text folders are not set to “English”).
    Alternatively, you can also copy the entire game/mod, but I like to keep it clean. Besides it can get tricky to set up mods that have their own dat file in addition to the original one (like FoRes or CE). I tried and I couldn't do it. So I extracted the files myself.

    • [Rad] [Rad] x 3
  2. FDO

    FDO It Wandered In From the Wastes

    Jul 4, 2018
    Interesting, I didn't notice that until now. Do you have specific examples of problems this switch can cause? I use proto manager since a while and didn't notice issues with this? Though the mod I work on is a TC and I don't replace/edit vanilla proto, I always create new ones, maybe that's why?

    Else, I find the tool already quite ergonomic but your suggestions are good. I didn't try it on released mods so I can't speak about the other problems you reported.

  3. Mr.Stalin

    Mr.Stalin Agent of Enclave Modder

    Oct 29, 2015
    With perks in the editor, everything is in order, it works with the engine perks ID, and not with the names from perks.msg
    Obviously your names are confused there.

    Long Range ID 58 = in perk.msg line 159
    Accurate ID 59 = in perk.msg line 160
    Penetrate ID 60 = in perk.msg line 161

    Last edited: Mar 30, 2019
  4. Mr.Stalin

    Mr.Stalin Agent of Enclave Modder

    Oct 29, 2015
    There will be no problems

  5. Mr.Stalin

    Mr.Stalin Agent of Enclave Modder

    Oct 29, 2015
    I have plans to use Stats.ini and Skills.ini from sfall files with custom settings for this.

  6. Mr.Stalin

    Mr.Stalin Agent of Enclave Modder

    Oct 29, 2015
    There is a button to the left of the input box - for searches cyclically, or use hot key F3 :)

    • [Rad] [Rad] x 1
  7. Muttie

    Muttie It Wandered In From the Wastes

    Oct 9, 2017
    I haven't changed anything. It's Fallout Fixt, clean install. However, F2wedit does not scramble those weapon perks. (?).
    Still, it would be nice to switch them around. When I write down numbers I usually go by in-game order and then it's easy to get them mixed up if not paying attention to the changed order in the Manager.
    Cheers :)
    P.S. One nice thing about machines and computers is that they are never smarter than oneself :wink:.

  8. Muttie

    Muttie It Wandered In From the Wastes

    Oct 9, 2017
    I tested it again (by adjusting perk.msg of Fixt), and just to explain the point:
    This is what perk.msg of Fixt looks like:
    Using this with ProtoManager and the perks are scrambled: 164 is used for 159, 159 for 160 and so on.
    When I change perk.msg to:
    Then the weapon perks are not scrambled anymore. So ProtoManager is thrown off by the order alone. While F2wedit takes it in stride. Maybe that's interesting.

  9. Mr.Stalin

    Mr.Stalin Agent of Enclave Modder

    Oct 29, 2015
    I understood my mistake. I'll fix it.

    • [Rad] [Rad] x 1
  10. Foxx

    Foxx Russian Modder

    Oct 31, 2017
    Здоровенько)))
    В первой части, при выборе Thumbnail прога выдает ошибку.

  11. Mr.Stalin

    Mr.Stalin Agent of Enclave Modder

    Oct 29, 2015
    У меня на чистом F1 все OK!

  12. Foxx

    Foxx Russian Modder

    Oct 31, 2017
    Я про чистую от 1С и писал)))

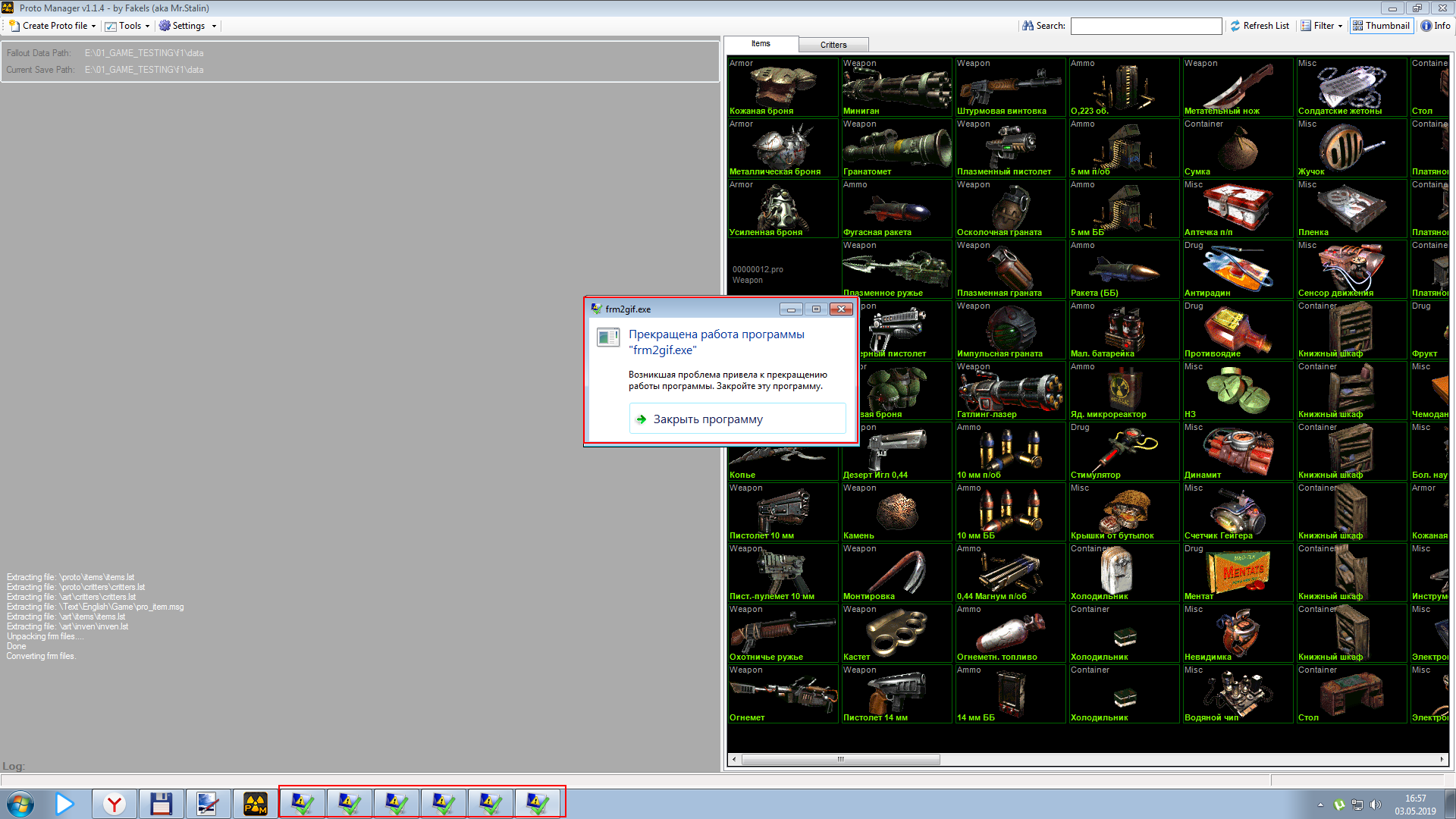

    Вот, что вылетает и ошибки постоянно добавляются. В панели задач видно:

  13. Mr.Stalin

    Mr.Stalin Agent of Enclave Modder

    Oct 29, 2015
    Я тоже)
    Проблема в вашей ОS. Видимо в ней некорректно работает сторонняя утилита frm2gif.exe
    Перейди на 32-битную систему))) ИЛИ Попробуй сменить путь.

    И после какого спрайта начинает выскакивать ошибка?
    Как вариант можешь прислать master.dat может он у вас глючный. :p

    Last edited: May 3, 2019
  14. Foxx

    Foxx Russian Modder

    Oct 31, 2017
    Чего выкаешь :)

    Ошибка именно в первой части, во второй ее нет. Так, что исключаем все предложенные варианты)))
    master.dat из лицензии от 1С, я же писал, что чистая. Проверил по фильтру категорий - на оружии выскакивают ошибки. На каком спрайте не понятно, как weapon или all выбираешь, начинается. И пока прогу принудительно не закроешь они дублируются.

    P.S.
    Проверил на чистой английской версии от GOG, тоже самое:

    P.P.S.
    Мне сама фишка не нужна по идее, я просто хотел gif взять, они в папке проги появляются)))
    Кстати проверил на новой версии 1.1.5 - аналогичная ситуация. И поправь архив, там в двух папках запакована программа.

    Last edited: May 3, 2019
  15. Mr.Stalin

    Mr.Stalin Agent of Enclave Modder

    Oct 29, 2015
    На золотом камне(слитке) 243 - 244.pro открой их в окне для редактирования и проверь с конвертируется изображение.
    у тебя там и нож не показывается.
    а на криттерах нормально?

  16. Foxx

    Foxx Russian Modder

    Oct 31, 2017
    На криттерах все нормально. А откуда у тебя в первой части итемов 243 и далее?

    Last edited: May 3, 2019
  17. Mr.Stalin

    Mr.Stalin Agent of Enclave Modder

    Oct 29, 2015
    Ну у меня жe не глючный master.dat)

    edt: Я разобрался оказывается это вина неправильного файла oknife.frm, он не открывается не одним редактором и не конвертируется. и у меня он в папке заменен на исправленный файл из F2.

    Last edited: May 4, 2019
    • [Rad] [Rad] x 1
  18. Foxx

    Foxx Russian Modder

    Oct 31, 2017
    Молодец, все работает.
    Может в проге подмену арта сделать или просто его пропуск?
